1.5″ Composite Corrugated Metal Floor Decking

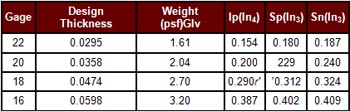

Floor Decking Specs

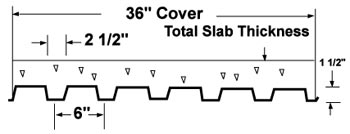

a composite deck floor The composite floor deck is designed primarily for the pouring of concrete over it to make a form for a floor or structure. The 1.5 composite floor deck, or LOK-Deck is very similar to our B-Deck panel, but with one main difference. The composite floor decking panels has several bumps or louvers placed on the risers of deck to adhere the concrete to it, and hold the concrete form in place. The 1.5 deck comes in a standard 36" width (unlike the 2" & 3", which come in a standard 24" wide panel). The designer of most projects will specify what material type the floor deck should be for each particular job, but the composite deck is sold primarily in the G-6o galvanized.

corrugated deck

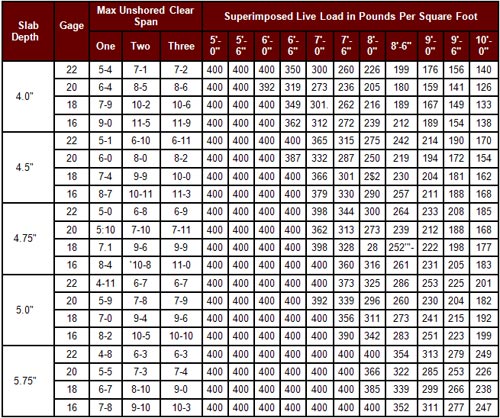

The panel comes in your standard 8′, 10′, 12′, 20′, and up to 24′ Long. Also, we can do almost any length requested with cut to size pieces. We would also be happy to guide you as to which floor deck you will need but out load & span tables can provide you with all the information one will need to know, as to which span and gauge thickness you need to make sure you are using the most optimal deck for your particular job. Please contact us when you have a job where you need a composite floor panel for your structure.
